Microphones, lavaliers, shotgun mics and voice recorder options for iPad / iPhone from the manufacturers of RODE, whether it be audio, DSLR or voice recording, BOYA represents premium sound equipment.

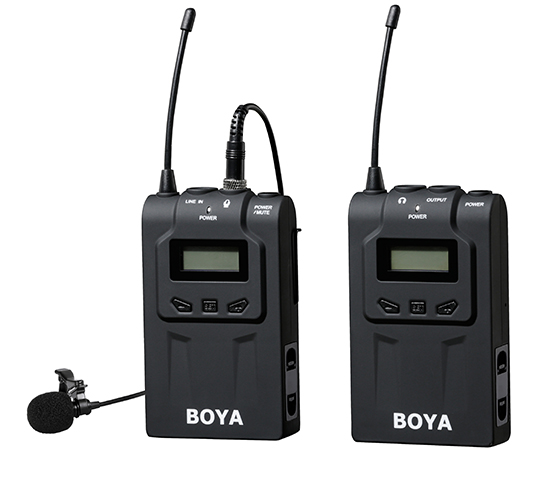

The Boya BY-WM6 is a 48-Channel Wireless Microphone System ideal for DSLR cameras, Cinematic Production, Electronic News Gathering (ENG) and Electronic Field Production. The WM6 Transmits audio up to 100m, and a broad frequency range allows you to find the clearest signal to transmit on, keeping your captured audio interference free.  The Kit also includes an Omni-Directional Lavalier Mic and an 3.5mm - XLR adaptor for connection with professional shotgun microphones.  The BY-WM6 Wireless microphone system is your next step towards cleaner, professional, broadcast quality audio! Perfect for interviews!

Features

  • Compander for High-Quality and Clear Sound
  • 48 UHF Channels
  • Mic and Line in
  • Backlit Display
  • Selectable Mute Function
  • Sound monitoring by Headphones (Receiver)
  • Omni-Directional Lavalier Mic
  • XLR cable output, Stereo mini plug cable
  • Approx. 8 hours continuous operation
  • Up to 100m Range
  • 1/4‘’20 thread for mounting Receiver to Tripod/Stand/Camera Rig
  • Cold-shoe mount adaptor included

Specifications

System Specifications

  • Oscillator Type: PLL Synthesized Control Oscillator
  • Carrier Frequency Range: 584 - 608 MHz
  • Channels: 48
  • Frequency Response: 60Hz - 15HKz +/-3dB
  • Operation Range: 100m
  • Operating/Storage Temp: -10 to +50°c

Transmitter Specifications

  • RF Output Power:  20 mW
  • Spurious Emission:  250 nW or less
  • Audio Input Connector:  3.5mm mini Jack
  • Audio Input Level:  600 mV - 2000 mV
  • Reference Deviation:  +/-7KHz (-60dBV, 1 KHz input)
  • Input Frequency Range:  20 Hz - 20 KHz
  • Power Supply: 2 x AA batteries
  • Operation time: 8 hours
  • Dimensions: 106 x 67 x 29mm
  • Weight (w/o batteries):  95g

Receiver Specifications

  • Audio Input Connector:  3.5mm mini Jack
  • Signal to Noise:  80dB
  • Distortion:  0.8%  (-60dBV, 1 KHz input)
  • Earphone Output Level:  60 mW,  32 Ohms / 1 KHz input)
  • Audio Output Level:  120mV
  • Power Supply: 2 x AA batteries
  • Operation time: 8 hours
  • Dimensions: 106 x 67 x 29mm
  • Weight (w/o batteries):  98g

Lavalier Mic Specifications

  • Transducer: Back Electret Condenser
  • Polar Pattern:  Omni-Directional
  • Frequency Range:  35Hz ~ 18 KHz
  • Signal to Noise:  74dB SPL
  • Sensitivity:  -30dB +/-3dB  /  0bD = 1V/Pa, 1KHz
  • Connector:  3.5mm Locking mini Plug
  • Cable Length: 1.2m

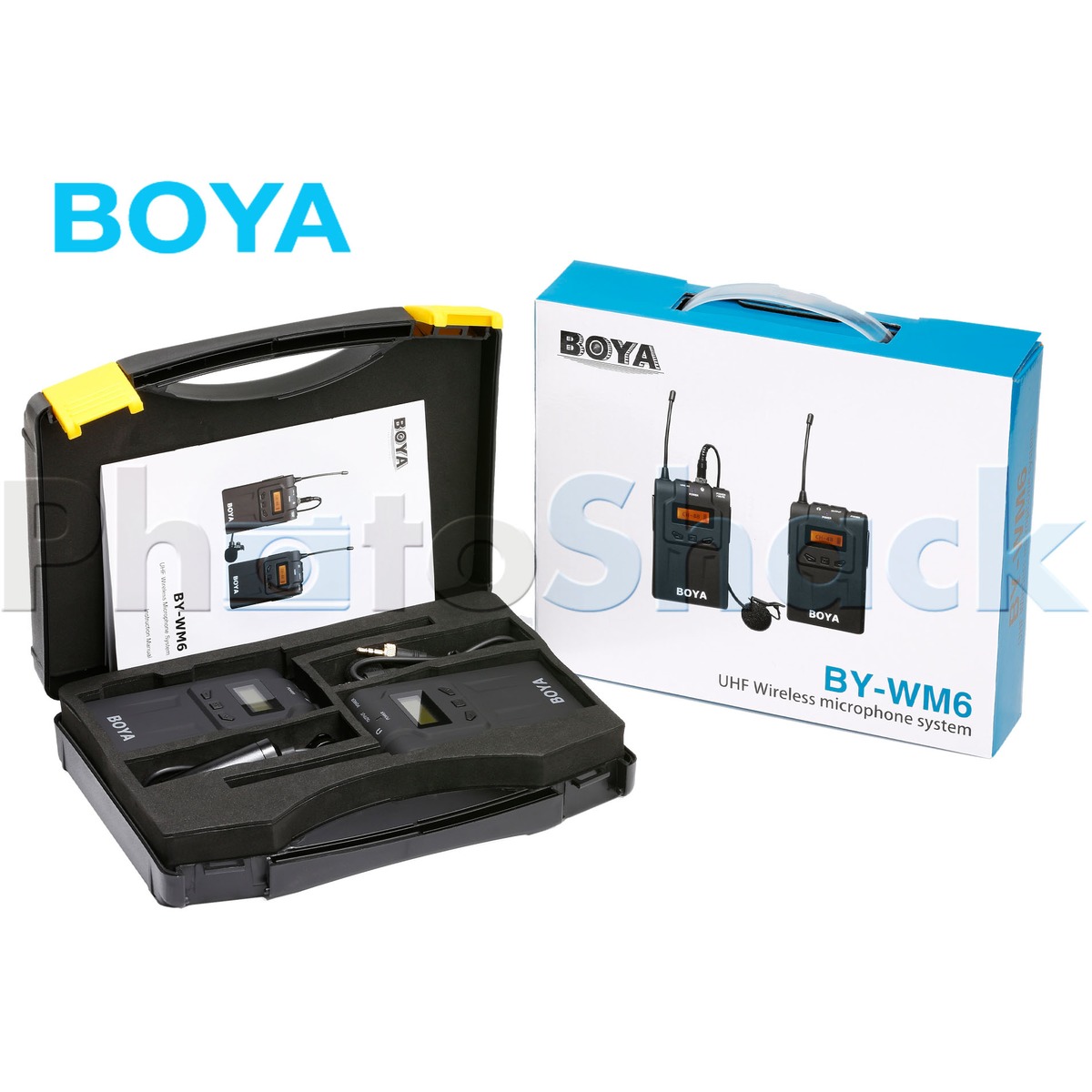

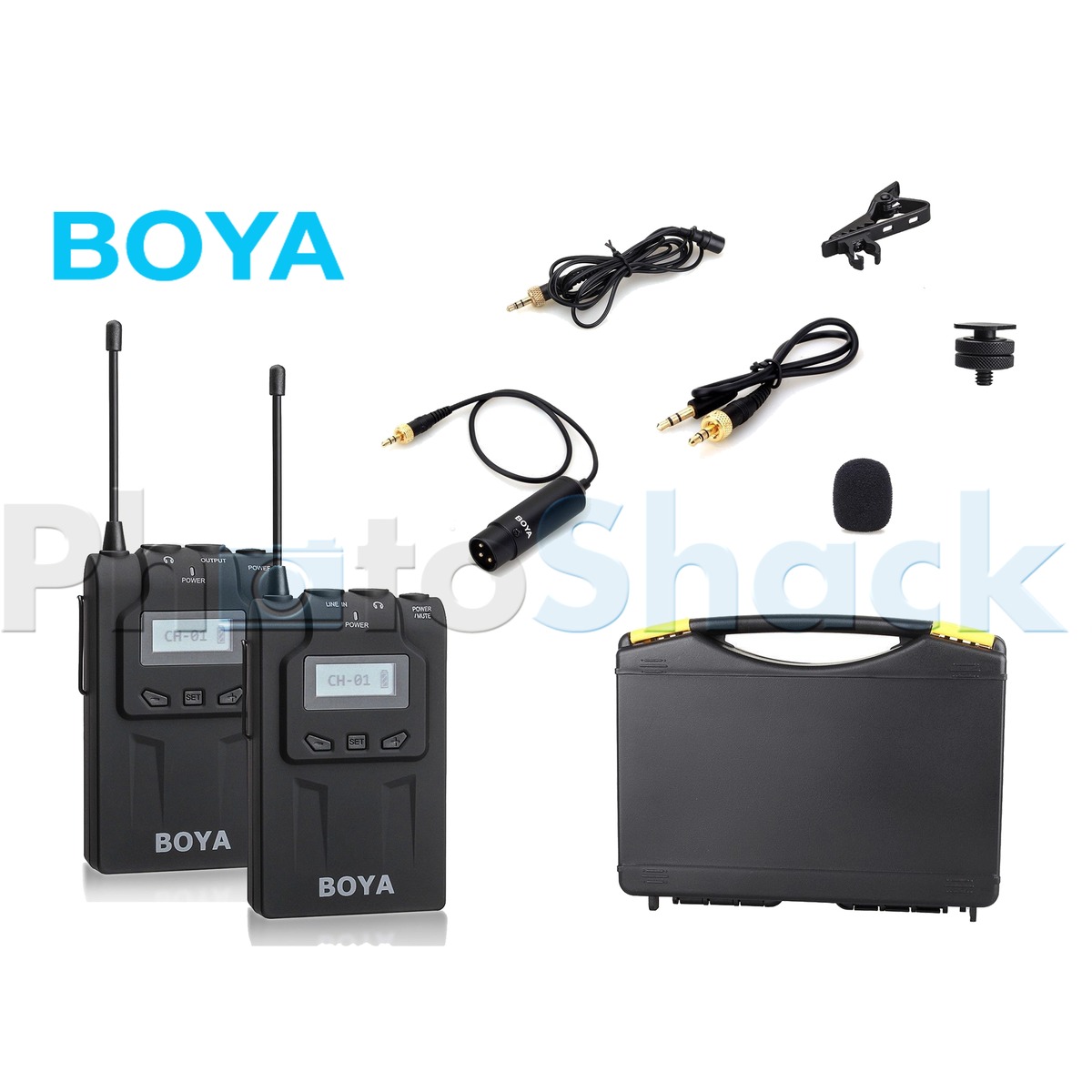

Kit Includes

  • 1 x BY-WM6 Transmitter
  • 1 x BY-WM6 Receiver
  • 1 x Omni-Directional Lav. Mic. w/ Windscreen
  • 1 x Mic Clip
  • 1 x XLR Output Connector
  • 1 x Stereo 3.5mm mini plug adaptor
  • 1 x Belt Clip
  • 1 x Cold Shoe Mount Adaptor
  • 1 x Custom Foam Cut Hardcase

Optional

  • BY-CIP smartphone adapter - allows recording using your smartphone

All purchases are subject to our Terms & Conditions.
Images and script subject to copyright Photoshack 2017.

Boya BY-WM6 Professional UHF wireless microphone system

$261.75

$349.00

Website price only

Main Features

  • Selectable Mute Function
  • Approx. 8 hours continuous operation
  • Up to 100m Range
  • XLR cable output, Stereo mini plug cable
  • Sound monitoring by Headphones (Receiver)

In Stock! Ships Today

Code: BYWM6 ID: 2672
