Introducing the Nebula 5100 Slant 3-Axis Single Handheld Gimbal with Built-in Encoder.
Superb stabilisation, ingenious design. Beholder of all gimbals

Features

Fast, simple set up
No more screen blocking
New High-Torque motors with built-in encoders
3.2kg (7lb) Payload
8-10 hours battery life, supports direct charge

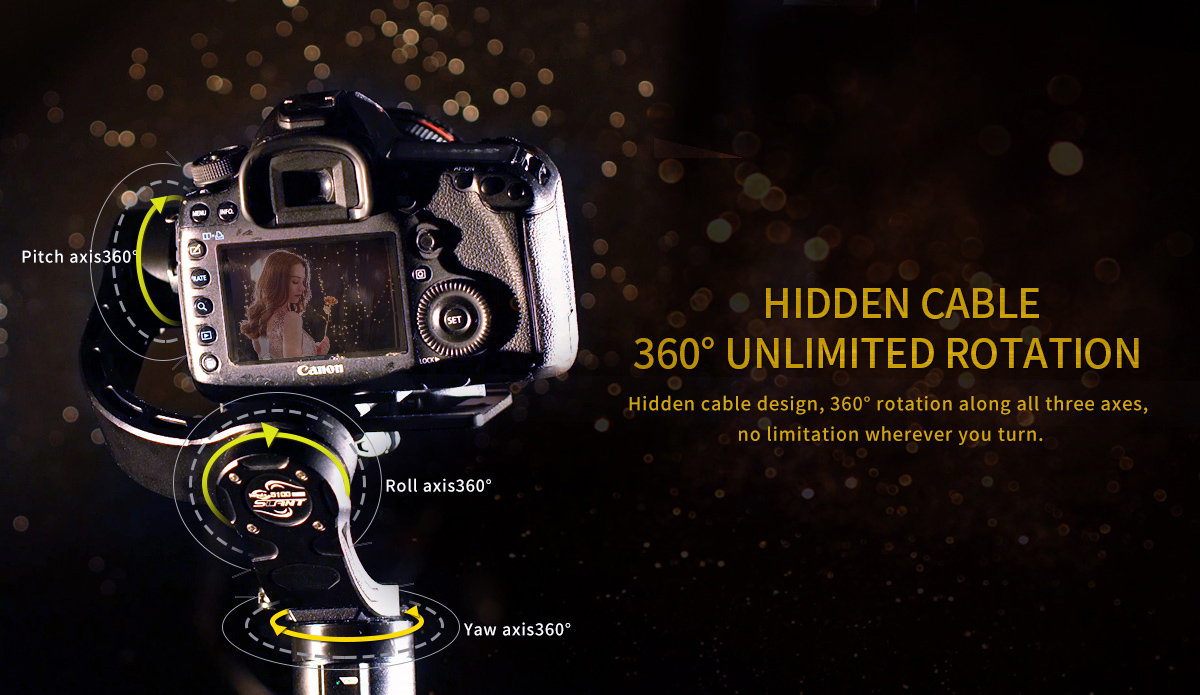

Hidden cable design, 360° unlimited rotation for all 3 axes
Joystick design, one key recording, one key back to the midpoint
Integrated structure, no assembly needed
Special tactical cage design
1/4 screw holes for various support equipment

Specifications

Camera compatibility: Canon 5D series, Sony A7 series, Panasonic GH series, Nikon D800 series, Sony FS5, Canon 1DX and etc.(Lens and Camera total weight less than 3.2KG)
Built-In Functions: Follow control, Orientation-locked control, Steady system, Infrared system, Remote system, Support flipping modes.
Operation Modes: Follow Mode, Semi-follow Mode, Lock Mode, Roll Follow Mode
Operating System Support: Windows, Mac iOS
Operating Temperature: -25 to 70°C / -13 to 158°F
Product Material: Magnesium-silicon alloy
Gimbal Weight: 0.9kg (2.0 lb)
Gimbal Dimensions: 320x125x155mm
Load Weight: Up to 3.2 kg (7.1 lb)
Angular Vibration Range: ±0.01° (minimum), ±0.04° (maximum)
Mechanical Endpoint Range:
- Pan axis: 360°
- Tilt axis: 360°
- Roll axis: 360°
Control Precision: 0.01°
Battery capacity: 1800mAh
Work time: 8-10 hours
Power supply: 12.8V
