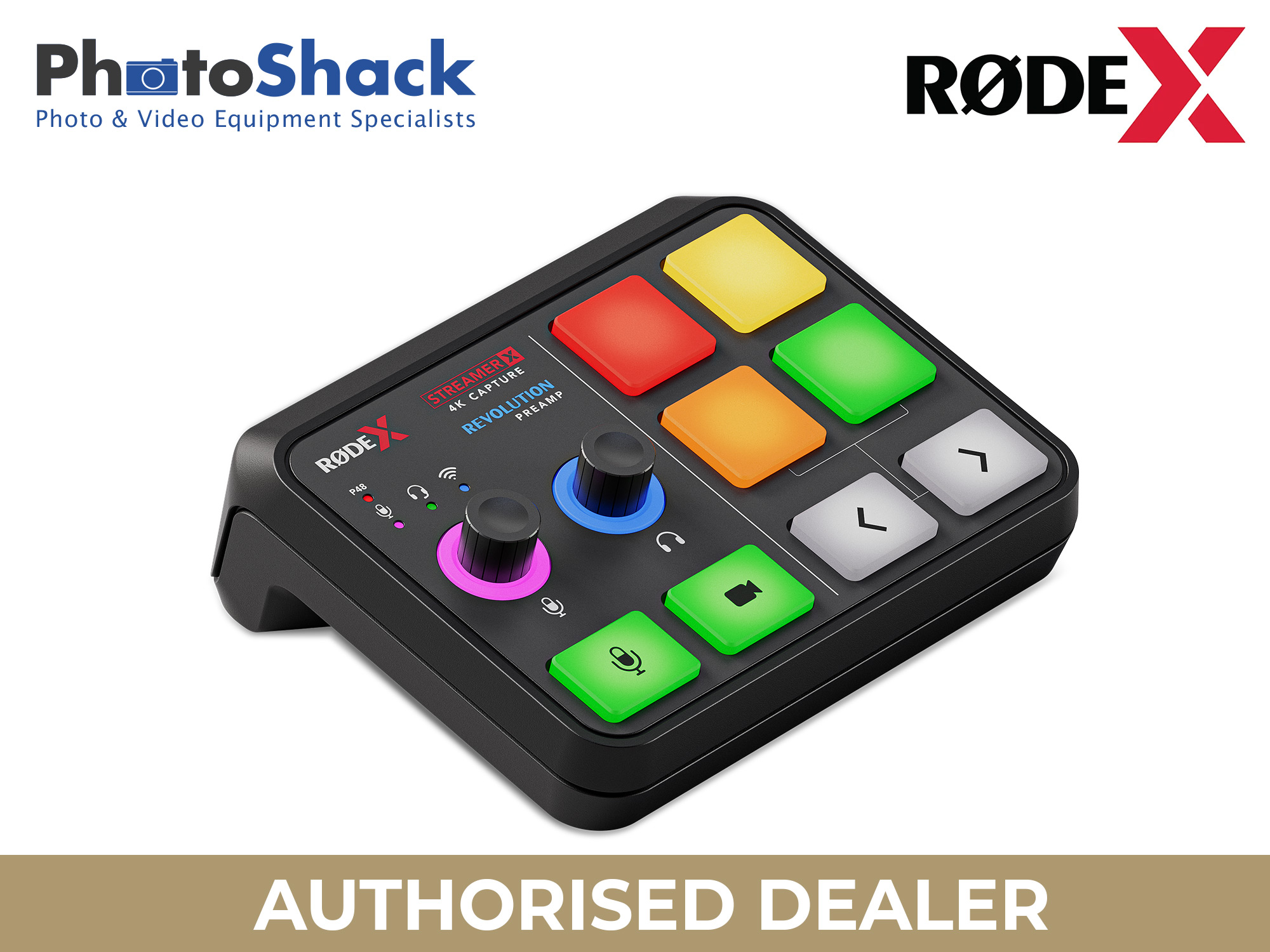

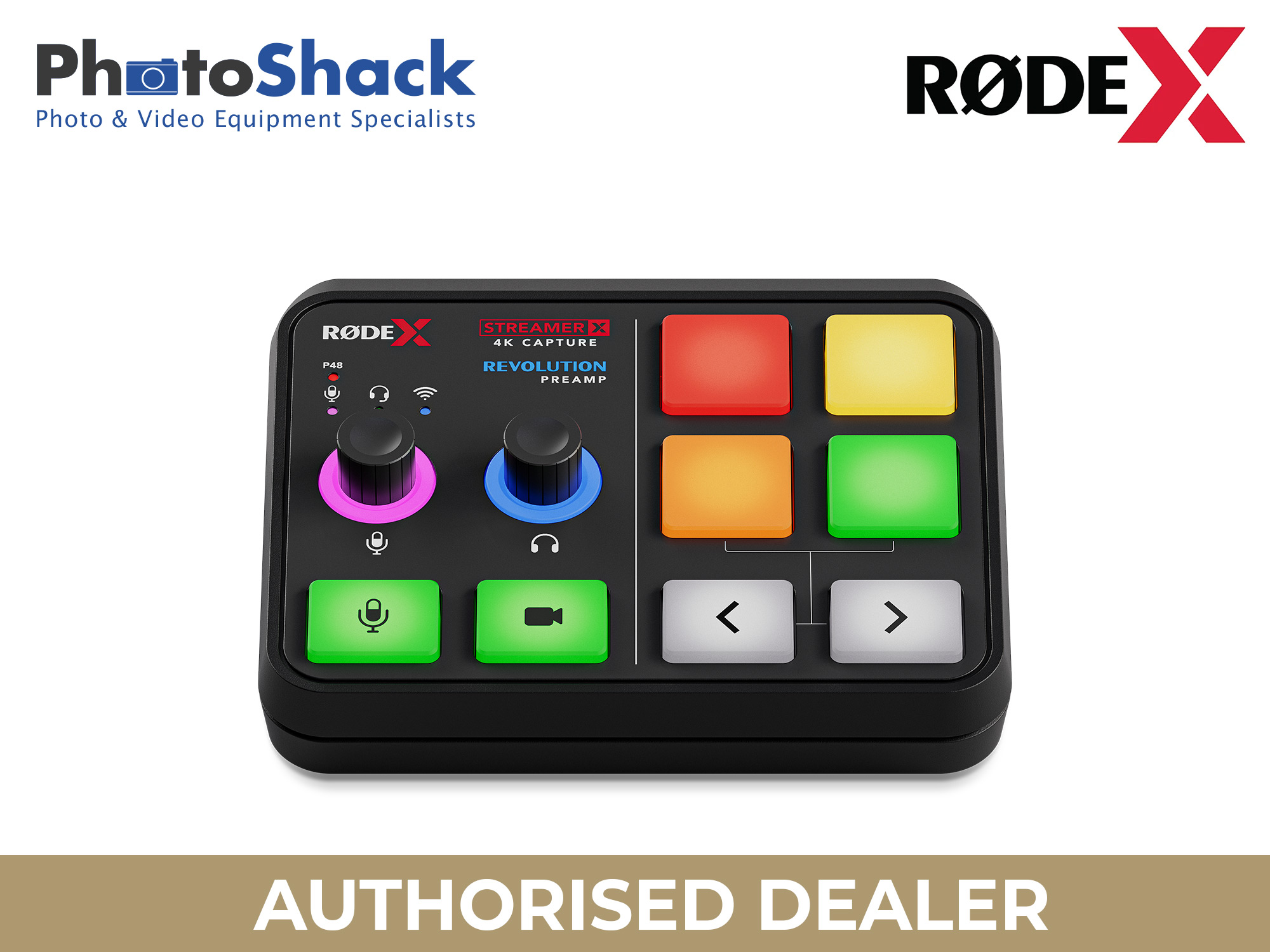

The Rode Streamer X Compact Audio Interface is a revolutionary new product that combines a professional audio interface and video capture card in a compact, easy-to-use console. It features studio-grade audio inputs for XLR, line-level devices and headsets with an ultra-low-noise, high-gain Revolution Preamp™ and powerful APHEX audio processing delivering pristine sound quality. It also features the same compatibility with RØDE Series IV wireless microphones that will be coming to the RØDECaster Pro II in the next firmware update.

On the video front, it offers 4K30 / 2K60 streaming and up to 2K120 / 4K60 pass-through for incredible video quality in a wide variety of applications, from streaming and gaming, to podcasting and content creation, to business presentations.

Two USB-C connections seamlessly accommodate dual PC setups, and four customisable SMART pads allow for on-the-fly triggering of sound or voice FX and other actions on a computer. It is also fully compatible with RØDE software solutions, including UNIFY, RØDE Central and RØDE Connect for expanded functionality and unmatched flexibility.

The Streamer X represents a new way to livestream with incredible audio and video. Never before has broadcast-quality video and audio capture been possible using a single console. This is the ultimate all-in-one streaming solution.

Features:

Compact, easy-to-use console
Studio-grade audio inputs
Up to 4K30 / 2K60 streaming
Up to 2K120 / 4K60 pass-through
Four customisable SMART pads

Specifications:

ACOUSTIC, VIDEO & ELECTRICAL SPECIFICATIONS:

Video Input Connectors: 1 x HDMI Type A 2.0
Video Passthrough Output: 1 x HDMI Type A 2.0
Max Input Resolutions:
- 4Kp60 HDR
- 1440p144 HDR
- 1080p240 HDR
Variable Refresh Rate Support: Yes
Max Capture Resolutions:
- 4Kp30
- 1440p60
- 1080p120
- 1080p60 HDR

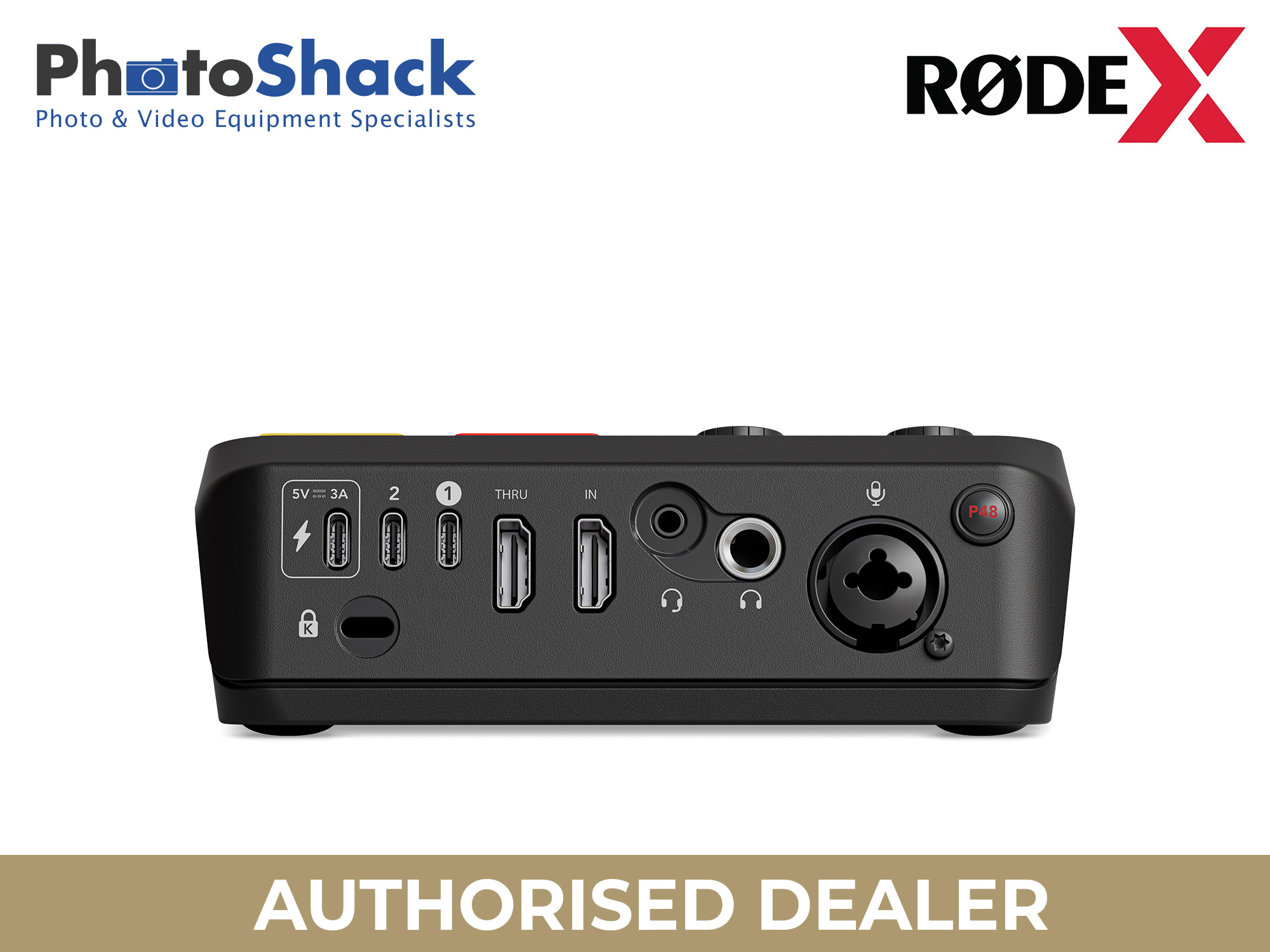

Audio Input Connectors:
- 1 x XLR Combo Jack (Mic/Instrument)
- 1 x Wireless Receiver
- 1 x Input HDMI
Audio Output Connectors:
- 1 x 3.5 TRRS Headset Jack (I/O)
- 1 x ¼” Headphone Jack
Input Dynamic Range: 113dB
Preamp Noise: -131.5dBV (A-weighted)
Frequency Range:
- Microphone Inputs: 20Hz-20kHz
- Headphone Output: 20Hz-20kHz
Microphone Input Impedance (Ω): 4KΩ
Instrument Input Impedance (Ω): 1MΩ
Preamplifier Gain Range: 76dB
Phantom Power: Yes
Direct Monitor: Yes
Headphone Output Power: 125mW per channel
Internal Storage (GB): 2GB (SMART Pads)
Power Requirements: Via USB: 5V @ 3A

DIGITAL SPECIFICATIONS:

USB Interface:
- USB 1: USB 3.1 type C
- USB 2: USB 2.0 type C
Bit Depth: 24-bit
Sampling Rate (kHz): 48kHz
Processing:
- APHEX Processing
- RØDE Voice FX
Minimum OS Requirements:
- macOS 10.15 or later
- Windows 10 Version 1803 or later
- Windows 11

MECHANICAL SPECIFICATIONS

Weight (grams): 380g
Dimensions (millimetres):
- Length: 144mm
- Width: 122mm
- Height: 51mm

Kit Includes:

1 x RODE Streamer X Audio Interface and Video Capture Card

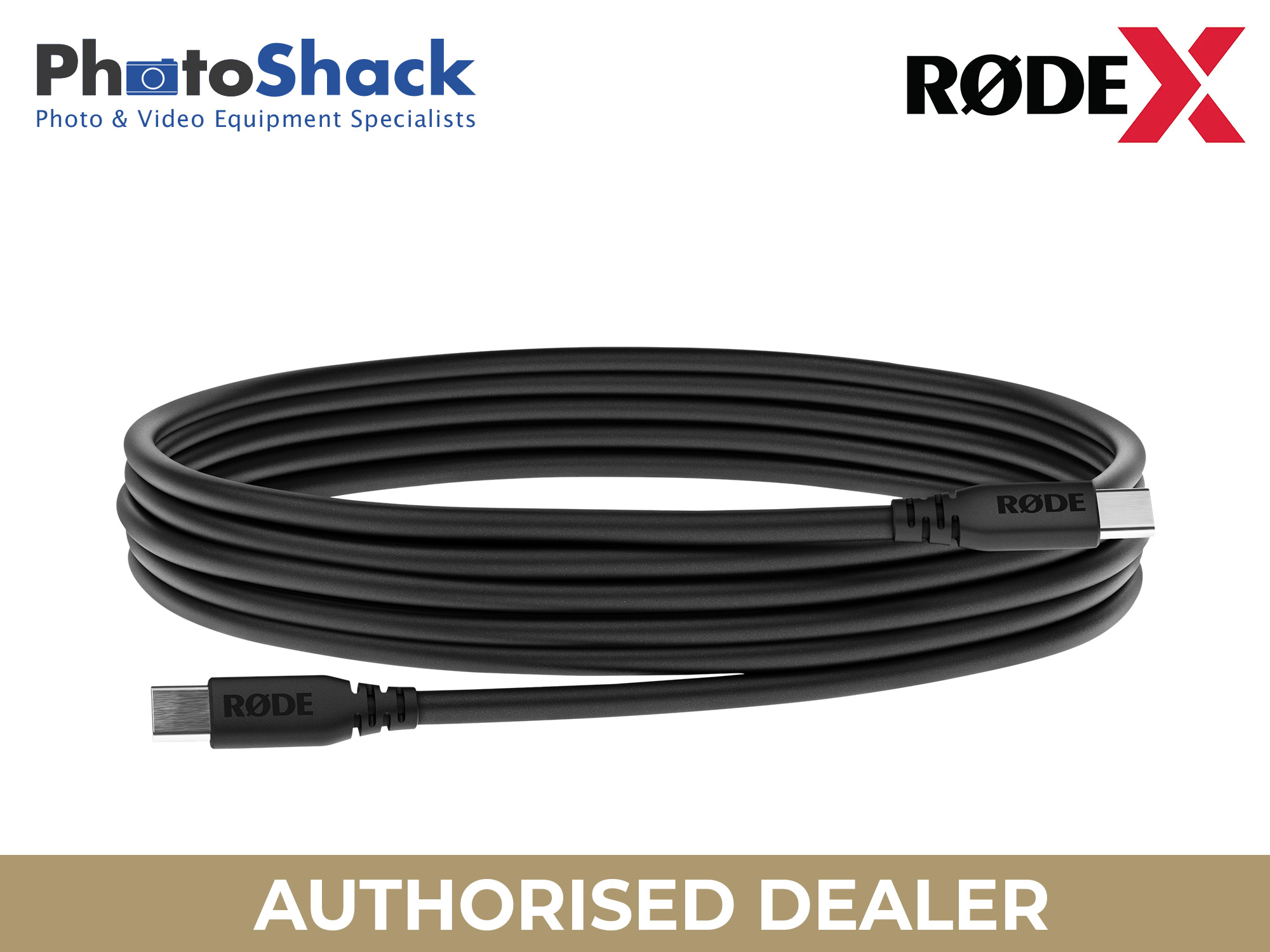

1 x SC27 USB-C Cable
1 x Power Adapter
1 x RODE UNIFY Download
