Rode PinMic

Overview

Print Email a Friend

The Rode Pin Mic is a discreet lavalier / lapel microphone with an innovative pin-through design that is not only easier to conceal than a traditional lapel mic, but provides greater mounting versatility.

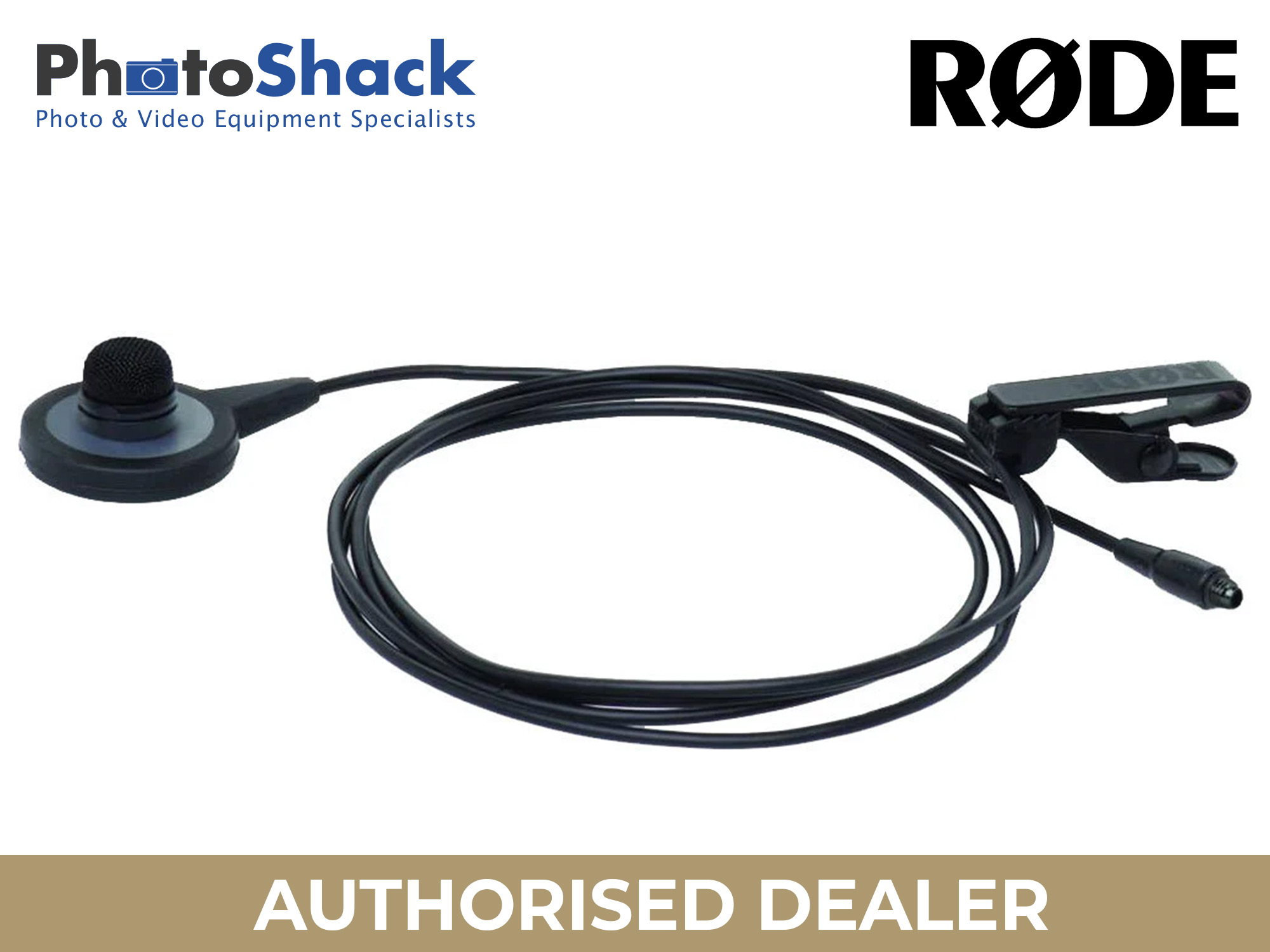

Comprised of a cabled backplate and a removable omni-directional capsule head, the PinMic™ is easily mounted onto any clothing or fabric by simply pushing the backplate pins through the back of the fabric and sliding the capsule into place on the front. The microphone backplate and cable are hidden behind the fabric, and the capsule head can be easily disguised, covered or decorated to further conceal the microphone. The MiCon™ connector system provides seamless integration between the PinMic™ and a wide range of wireless systems as well as consoles, cameras and portable recorders. PinMic™ is an ideal solution for film, television, video, theatre, house of worship and anywhere where a high quality microphone needs to be heard but not seen.

Features

The PinMic™ capsule is discrete at only 9mm deep and 11mm in diameter
Black and an unpainted silver mesh head that can be further camouflaged by painting
easily mounts through any fabric up to 1.5mm (0.006") thick without any damage to clothing
The microphone capsule is connected via a 1.2m (4') shielded, detachable Kevlar® reinforced cable that has been rigorously strain tested to ensure reliable performance.
Omni-directional polar pattern
Removable Mesh Head
Ultra Discreet Appearance
Lightweight And Easy To Position
High Quality Performance
Low Noise Miniature Microphone Capsule
Low Handling Noise
Universal Compatibility
The included mini-furry for high wind protection ensures quality recordings in adverse environments
anti-trauma water resistant case provides rugged and secure protection for the microphone, a spare capsule head, the microphone cable and included accessories
The RØDE PinMic™ lapel microphone is designed and made in Australia

Specifications

Acoustic Principle: Permanently Polarized
Active Electronics: JFET impedance converter
Capsule:0.10"
Polar Pattern: Omni-directional
Address Type: End
Frequency Range: 60Hz - 18kHz
Output Impedance: 3000Ω
Maximum SPL: 110dB SPL (@ 1kHz, 1% THD into 1KΩ load)
Maximum Output Level: 189.0mV
Sensitivity: -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted)25dB-A
Power Options: +48V phantom power
Weight: 10.00gm
Dimensions: 16.00mmH x 22.00mmW x 33.00mmD
Output: Micon™
