RODE NTK Premium Valve Condenser Microphone RODNTK | Photoshack

Overview

Print Email a Friend

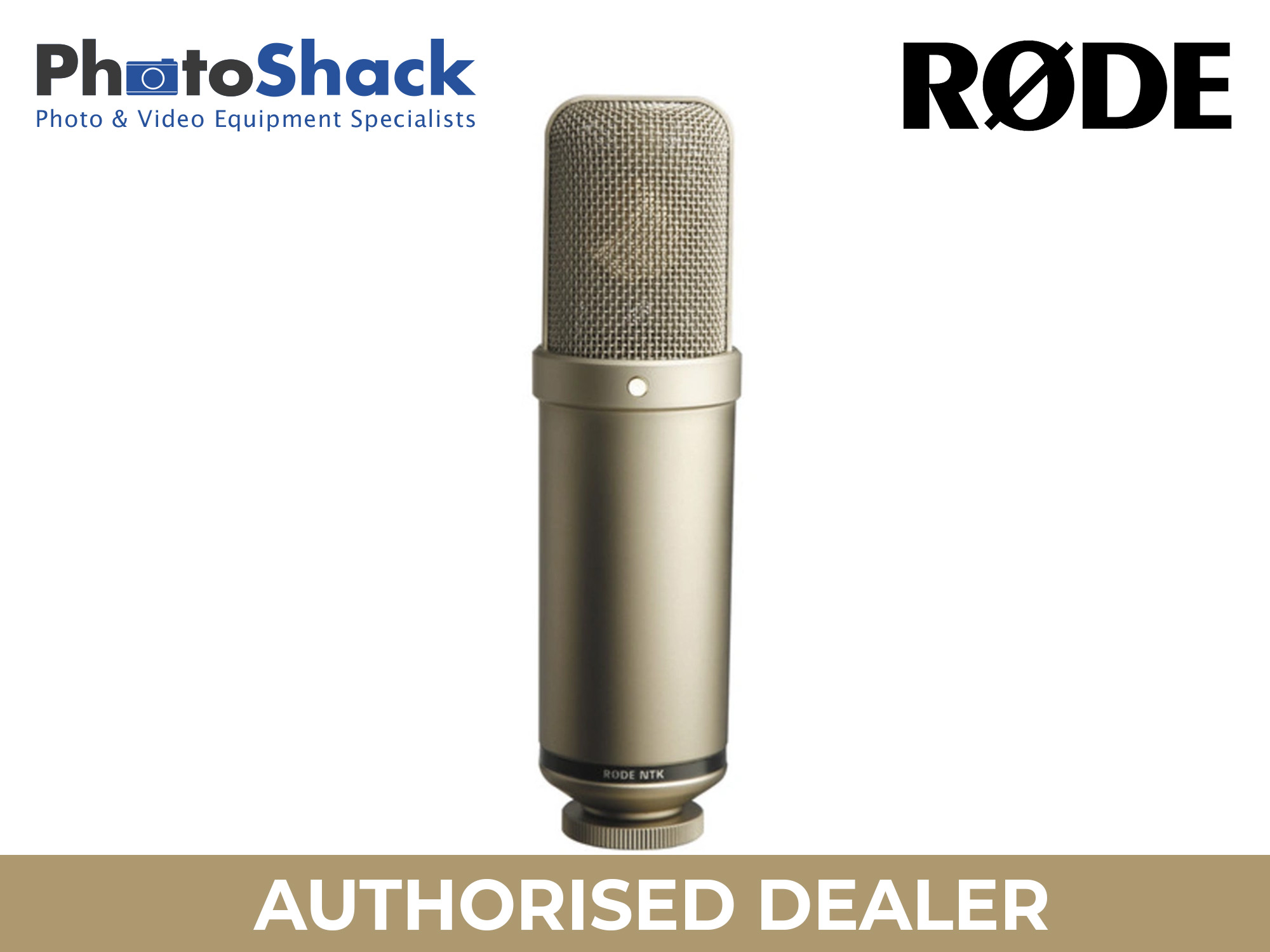

The Rode NTK Microphone is a large-diaphragm condenser microphone which employs Class-A valve circuitry resulting in a warm sonic character. The NTK is designed for vocal and general instrument recording while providing the sonic character found in higher-priced tube microphones. The capsule features a mylar dual diaphragm, sputtered in gold to provide transparent signal reproduction and wide frequency response.

The G.E. 6072 Twin Triode Valve is the core of the NTK's circuitry, providing an analog "warmth" and presence that meets the standards of the most demanding engineers. The microphone features a custom-built, Mu-metal transformer developed by Jensen Transformers. The end result is quiet, noise-free output at high gain levels. The NTK features a separate power supply, providing +48 volt phantom power. In addition, variations of cardioid, omnidirectional, and figure-8 polar patterns provide a total of 9 selectable patterns.

Tube Circuitry
The Rode NTK features the G.E. 6072 Twin Triode valve at the heart of its circuitry. The result is a warm sonic character found in higher priced tube microphones

Quality Transformer Design
The custom-designed, Jensen Mu-metal transformer provides a low-noise high gain signal path on output.

9 Polar patterns
Variations of cardioid, omnidirectional, and figure-8 provide a total of 9 selectable polar patterns.

Separate Power Supply
A separate power supply provides +48 volts of phantom power.

Features:

Premium large-diaphragm valve condenser microphone
1-inch gold-sputtered capsule
Hand-selected twin-triode 6922 valve
Ultra-low noise
Wide dynamic range
10-year warranty

Specifications:

Acoustic Principle: Pressure Gradient
Active Electronics: Valve/tube impedance converter with bipolar output buffer
Capsule: 1"
Polar Pattern: Cardioid
Address Type: Side
Frequency Range: 20Hz - 20kHz
Output Impedance: 200Ω
Maximum SPL: 158dB SPL
Maximum Output Level: 29.0mV (@ 1kHz, 1% THD into 1KΩ load)
Sensitivity: -38.0dB re 1 Volt/Pascal (25.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-Weighted): 12dBA
Power Requirements: PSU
Output Connection: XLR
Weight: 760g
Dimensions:
- Height: 208mm
- Width: 55mm
- Depth: 55mm

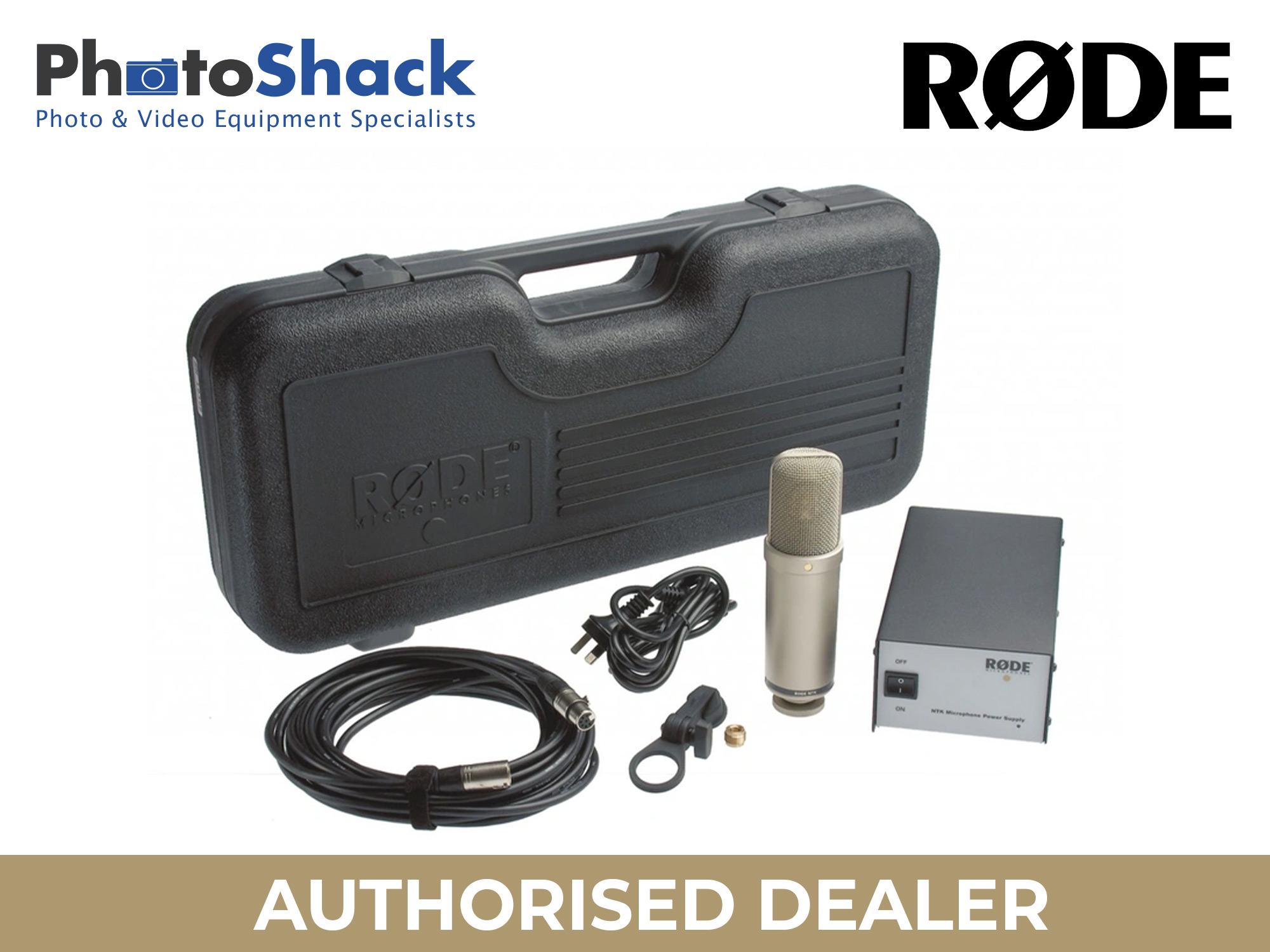

Kit Includes:

RODE NTK Premium Valve Condenser Microphone
RODE RC-2 Hard Plastic Case
RODE M-2 Stand Mount
RODE NTR-C 30' (10 m) Multicore Cable
RODE NTK-P Power Supply
RODE PL100 Power Cable
3/8 - 5/8" Thread Adapter
