The BOYA BY-WM8T is a Digital Wireless Bodypack Transmitter with a Lavalier Microphone, compatible with BY-WM6 Receiver(as transmitter A) and BY-WM8 Receiver (sold separately). It features an easy to read LCD display, a wide switching RF bandwidth, a Mic/Line switchable input, and digital circuitry, rugged lightweight plastic housing, and it’s suitable for DSLR cameras for videography, field recording, broadcast TV, and electronic news gathering (ENG) applications.

We also sell Shure, Rode, Saramonic, Tascam, Zoom and more

Features

  • 48-Channel for supporting for more than two systems simultaneously
  • UHF frequencies for interference-free reception
  • 24 MHz bandwidth
  • Equipped with a muting function
  • Enables switching between MIC and LINE IN input sources
  • Features a comprehensive LED display providing channel information, battery life, total usage time etc
  • Locked-plug Prevents Accidental Adjustment

Specifications

  • Oscillator type: PLL Synthesized Control Oscillator
  • Antenna: Flexible
  • Channel group: A or B
  • Carrier Frequency Range: 576.4 MHz-599.9 MHz (Channel group: A)
  • 568.6 MHz-592.1 MHz (Channel group: B)
  • RF output power: ≤10 mW
  • Input frequency range: 20 Hz-20 KHz
  • Connector: 3.5mm locking mini plug
  • Operation range: 100m (300')(without obstacle)
  • Dimensions: 95g (without batteries)
  • Weight: 3.5mm audio cable, shoe mount
  • Transducer: Back electret Condenser
  • Polar pattern: Omni-directional
  • Frequency Range: 35Hz ~ 18 KHz
  • Signal / Noise: -30dB +/-3dB / 0dB=1V/Pa, 1 kHz
  • Length: 1.2m (4’)

Compatiblility

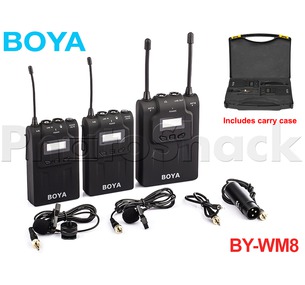

  • BY-WM6 Receiver (as transmitter A)
  • BY-WM8 Receiver

Kit Includes

  • 1 x Boya BY-WM8T Transmitter
  • 1 x Lavalier Microphone
  • 1 x Foam Windscreen
  • 1 x Mic Clip
  • 1 x User Manual
